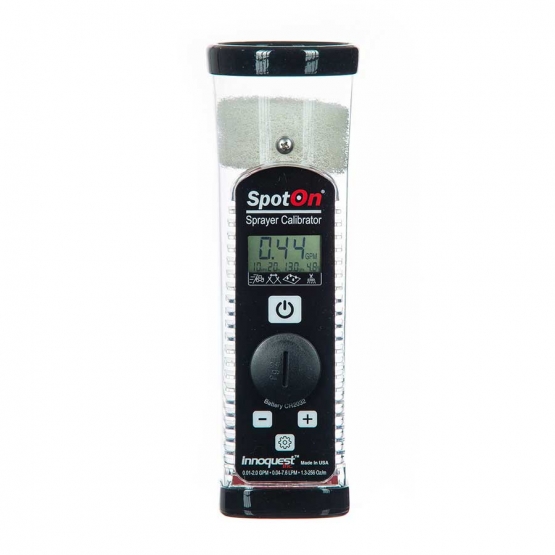

Sprayer Calibrator Model SC-2

Product Code: E25458


Sprayer Tools

The SC-2 provides quick and accurate flow rate checking of individual sprayer nozzles.  This model is best for flow rates below 2.25 GPM typical of herbicide and insecticide application.

  • No calculations or app download required:
    Automatically calculates and displays tip flow rate in GPM, LPM,
    oz/min, tip wear in %, and application rate in GPA/LPH (just enter
    your speed and nozzle spacing).
  • Fast and simple operation:
    Readings in about 10 seconds per tip.
  • Quickly find worn spray nozzle tips:
    Industry guidelines recommend tip replacement once flow rate
    exceeds that of the new tip by 10%.
  • Accurately measure true tip flow rate:
    Today’s high-tech sprayers can only be properly calibrated and
    confirmed with this knowledge


  • Range & Units: 0.02 – 2.25 GPM, 0.08 – 8.52 LPM, 3 – 288 oz/min (GPM in US Gallons)
    Accuracy: +/- 2% or 1 Digit
    Resolution: 0.01 GPM, 0.01 L/min, 1 oz/min
    Fluid Compatibility: Water & Water Based Solutions Only
    Battery: CR2032 Included (3 Year Battery Life)
    Size: 3” (7.6 cm) Dia x 8.75” (22 cm) Tall
    Weight: 0.6 lbs (272 g)
