WatchDog Sprayer Station w/Console

Product Code: E85553


$3,700.00

Watchdog Sprayer Weather Station



WatchDog Sprayer Station by Spectrum Technologies


Effective management of pesticide drift is increasingly important to pesticide applicators. Now you can monitor and data log weather conditions with the ultrasonic WatchDog Sprayer Station. Accurate data helps pesticide applicators make important decisions regarding weather conditions that affect safety, drift, and proper pesticide application. User controlled data logging of weather conditions provides evidence of suitable conditions for pesticide application.

Smaller than a can of soda, this all-in-one weather station measures air temperature, humidity, dew point, wind chill, barometric pressure and apparent wind speed and direction. It handles adverse conditions with a UV stabilized, compact housing that is fully waterproof and resistant to chemicals. Reliability is enhanced by eliminating moving parts: the traditional wind vane and cups have been replaced with ultrasonic transducers.

The WatchDog Sprayer Station is more than a compact and capable weather station. While on-the-go, the station uses its internal compass and GPS to adjust the wind sensor values by subtracting the vehicle speed and direction to compute the true wind speed and direction.

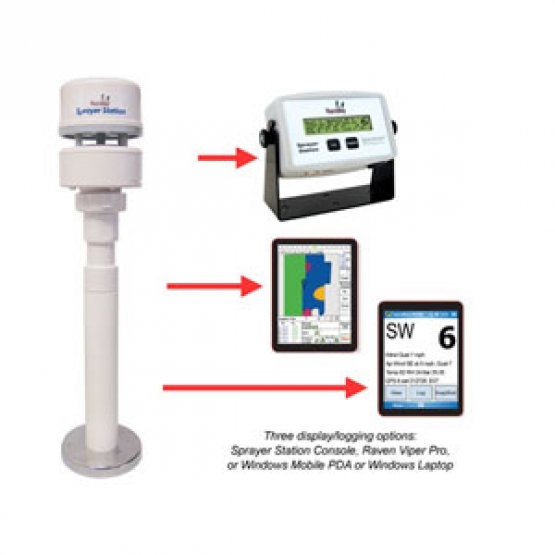

Display current conditions: wind speed & direction, temperature, humidity, barometric pressure, and GPS parameters (vehicle speed & direction, location, and satellite signal strength). Continuously log your weather parameters at a user-selectable rate or hit the snapshot button to capture current conditions.

SPECIFICATIONS FOR SPRAYER STATION

* Wind Speed Range: 0.6 to 114 mph (1 to 184 km/h)
* Wind Speed Resolution: 0.1 mph (0.2 km/h)
* Wind Speed Accuracy: +/-1 mph (+/-1.9 km/h) or +/-4% @ 32-122 F (0.50 C)
* Wind Direction Resolution: 1 degree
* Wind Direction Accuracy: +/-1.5% above 32 F (0 C)
* Operating Temperature: -22 C to 122 F (-30 to 50 C) Temperature Accuracy: 2.7 F (+/-1.5 C) with wind above 2.3 mpg (3.7 km/h)
* Relative Humidity Range: 10 to 95%
* Relative Humidity Accuracy: +/-5% with wind above 2.3 mph (3.7 km/h)
* Barometric Pressure Range: 25 to 34 in-Hg (850 to 1150 hPa)
* Barometric Pressure Accuracy: +/-1.5%
* Power Supply Voltage: 10 to 16 VDC

Kit includes the sensor unit with magnetic mount, display console with built-in data logger, CD with all software, 21' (7m) cable with vehicle power and serial connectors.
