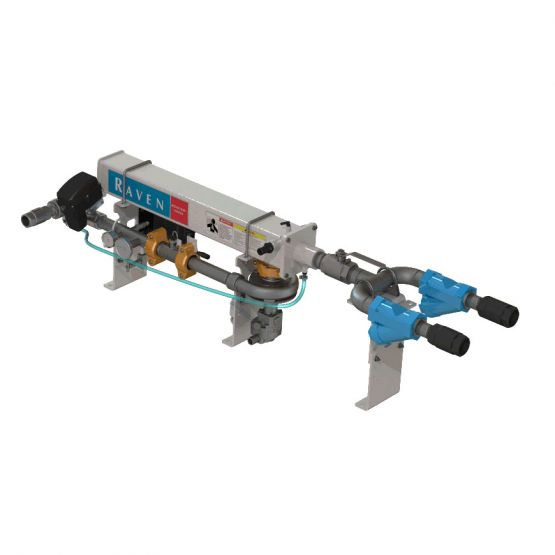

NH3 Vortex Kit by Raven®
AccuFlow - Vortex - HP+ Systems
No more square or flange fittings required for the end of the cooler. A large O-ring fitting makes for easier seal and replacement.
- Added Pressure Relief Valve and Bleed Valve between the Control Valve and the On/Off Valve in a Two Valve system
- NPT 1.2594 threaded system replaced by the Vortex Pipe and Adapter Kit
- Kit can adapt Vortex cooler to older or existing plumbing
- Kit includes brackets, U-bolts, and Gruv-lock adapter
FEATURES & BENEFITS
Capacity options:
- Vortex 194 valves: 30+ GPM
- Vortex 1.594 valves: 50 GPM
- HP+ with Vortex cooler: 80 GPM
*Systems were tested at 40 F and 60 tank psi (Fall conditions)
Reduced from 50+ fittings in older dual cooler system to less than 30 fittings for the Vortex cooler
Gruv-lock couplings
- Easier maintenance of the Flow Meter
- Less than 10 minutes to remove and re-install flow meter
- Only a single socket 7/894 wrench required Safety bleed down circuit
- Positioned at the front of the toolbar and empties into the vapor lines
- Additional needle valve for bleed down at the flow meter
- Operator is removed from the point of exhaust
Faster bleed down
- Half hour or less for full bleed down HP+ SYSTEM
Two Stage Valve Control System
- When flow demand exceeds a fully opened valve, the HP pump is triggered to reach the desired rate
Dynamic Valve Control
The Control Valve is commanded to react at a slower speed for lower rates and at a faster speed for higher rates
