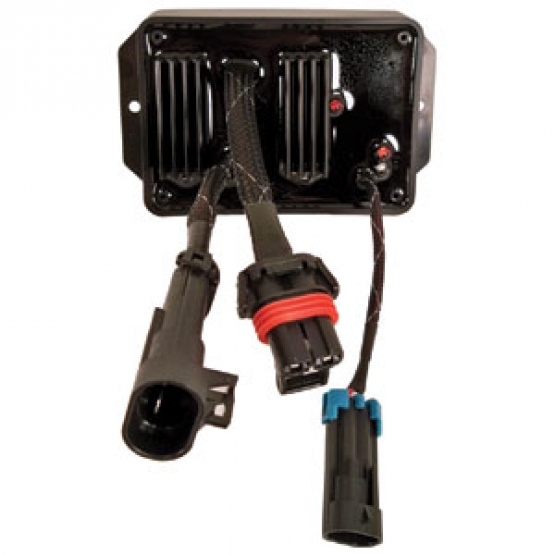

EMD Electric Motor Driver, 10 AMP

Product Code: MTR-18008


$796.95

Micro-Trak Sprayer Products



Electric Motor Drivers (EMD)
Pulse Width Modulation (PWM)Motor Drivers by Micro-Trak®


Whether you are using low-rate starter fertilizers, herbicides, insecticides, fungicides, or fumigants, precise rate control is essential. Accurate applications of crop inputs ensure a healthy, high-yielding plant. The Electric Motor Driver will help make this happen!

Micro-Trak’s Electric Motor Driver (EMD) enables all Micro-Trak rate controllers to control the rate of flow by regulating the speed of a 12V pump. The EMD replaces the electric servo valve and will control most 12V pumps with 10 and 40 Amps. The system can be purchased as part of a customized kit complete with control console, speed sensor, and flow meter; or if you own one of the Micro-Trak controllers, you can just add the EMD kit and use your existing console and components. SprayMate Plus offers the PWM control features.

Features:

* Enables Automatic Rate Controllers to control flow rate by regulating the speedof a 12VDC pump
* Ideal for low-rate applications such as liquid starter fertilizer on drills and planters
* Can be integrated into most major brand control systems
* Controls most 12VDC pumps up to a max of 60 amps
* Standard DC and PWM versions available
