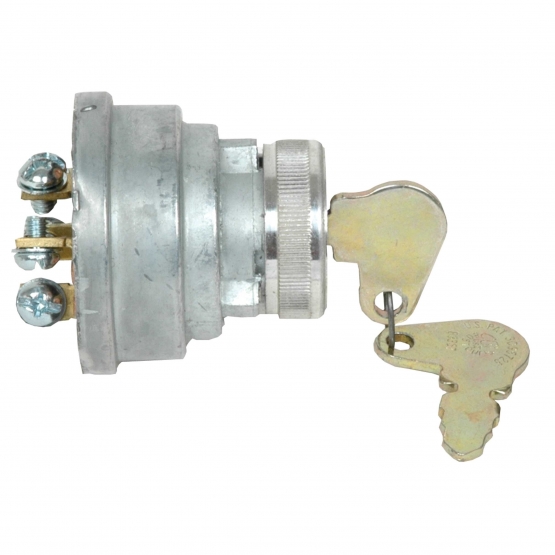

Ignition Switch Diesel
* Key removable in “Off” Position Only (where actuator applicable)
* Ignition Proof to SAE J259
* 5 screw terminals.
* Coded lock & keys.
* Gasket-sealed, Shutter lock seal, O-ring seal in stem.
* Ground terminal.
* 1”-24 bushing.
* Fuel-Off-Ign/Acc-Ign/Start. Spring return to Ign/Acc. Key removable at Off.
* Ratings at 12V DC: 10A Accessory, 10A Ignition, 5A Start, 1A Ground
