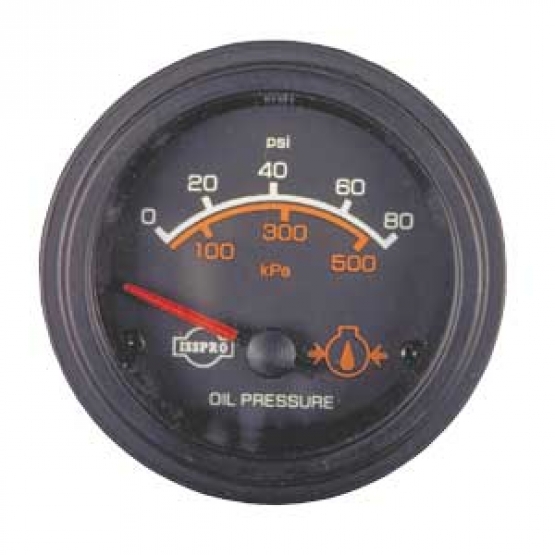

Oil Pressure Gauge by Isspro
Electric gauges are designed with a silicone dampened air core movement. A coil of wire is wound around a bobbin with a center magnet. When an electrical current is applied to the coil, the gauge pointer moves to the resulting electrical field. These gauges require a sender. The sender must match the gauge type code and range. Also required for an application is wiring with electrical ring terminals that provide 12V DC NG.
Standard features:
- 0-80 psi/0-550 kPA
- 2 1/16 mounting hole
- Black bezel
- 12V DC light kit and mounting hardware included
- 90° sweep
- One-year warranty
