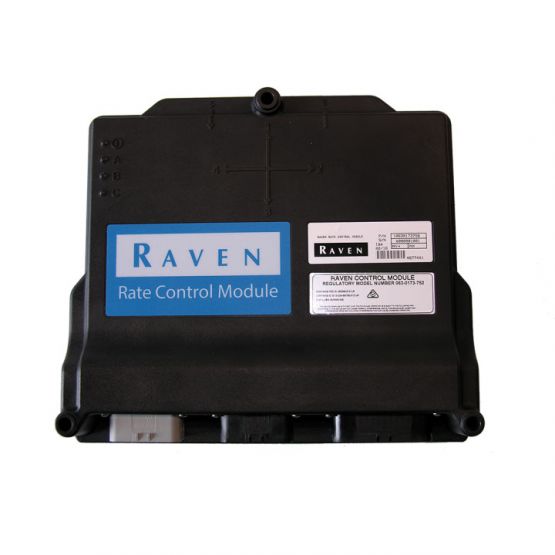

Raven (RCM) Rate Control Module Kit

The most precise application controller on the market

The RCM uses Raven's innovative control algorithms to make it the most precise application controller on the market today. It fits a variety of applications--up to five product liquid and granular control, NH3 (including AccuFlow HP+), air cart and generic applicators. Sixteen-section control eliminates expensive skips and overlaps for all phases of your operation, from spraying to NH3, and fertilizer application to planting.

The RCM is incredibly user friendly. Raven has simplified the setup, introduced integrated help content, and added advanced diagnostic information to quickly identify issues and reduce costly downtime. Customizable user interfaces give the operator the flexibility to see and control what fits their needs, and configurable machine profiles allow the RCM to easily move between machines and implements without re-setting machine configurations. The RCM is compatible with many ISOBUS virtual terminals on the market, including the Viper 4 and Viper 4+ from Raven.

The Raven Rate Control Module is the ultimate advancement in precision and efficiency, and the next solution for your operation's success.

COMPATIBILITY

AIR CART / GENERIC APPLICATOR
1 to 4 Products / 16 Sections 5 Products / 12 Sections
Support for up to

• 2 Fan RPM sensors
• 6 pressure, bin level and/or shaft sensors
• implement height switch

NH3 TOOL
NH3 Control

• AccuFlow HP+ Boost Pump
• add-on products
• up to 10 NH3 sections
• 14 sections total

Sidekick Pro ICD compatible

PULL-BEHIND SPRAYER/SELF-PROPELLED SPRAYER/LIQUID FERTILIZER TOOL
3 Wire Section Valves

• 1 Product
• 16 Sections + 2 Fence rows
• Sidekick Pro ICD compatible up to 4 Direct Injection pumps
• Tank Fill Monitor compatible

2 Wire Section Valves

• 1 Product,
• 8 two-wire valves (Sections 1-8)
• 8 section signals for two-wire valve interface external module (Sections 9-16) + 2 Fence rows
• Sidekick Pro ICD compatible up to 4 Direct Injection pumps

Tiered Boom - Direct

• Product, 10 Sections x 2 Tiers, Sidekick Pro ICD compatible up to 4 Direct Injection pumps

Tiered Boom 96 External

• 1 Product, 16 Sections, 2 Tier Signals (External module required) + 2 Fence rows, Sidekick Pro ICD compatible up to 4 Direct Injection pump

  PULL-BEHIND SPREADER/SELF-PROPELLED SPREADER

• 4 Products / 4 Sections / Spinner RPM Control

• Features & Benefits

• Liquid, NH3 and dry applications
• Easily navigate and manage multiple products, tallies, and sensor data
• Diagnostic tests and reading to easily calibrate, tune, and troubleshoot system
• ISOBUS compliant CAN channel, plus 3 available CAN subnets
• Compatible with ISOBUS Virtual Terminal and Task Controllers
• Integrated Bluetooth 4.0LE providing long range line-of-sight wireless connectivity for control, monitoring, and diagnostic features
• Multi-language support including English, French, Russian, Spanish, and Portuguese
• IP 67 environmental rating for the harshest of environmental conditions
• Integrated magnet mount option to easily attach and detach on any metal frame
• Dynamically configure run screen based on operator preferences to show most relevant data during operation
