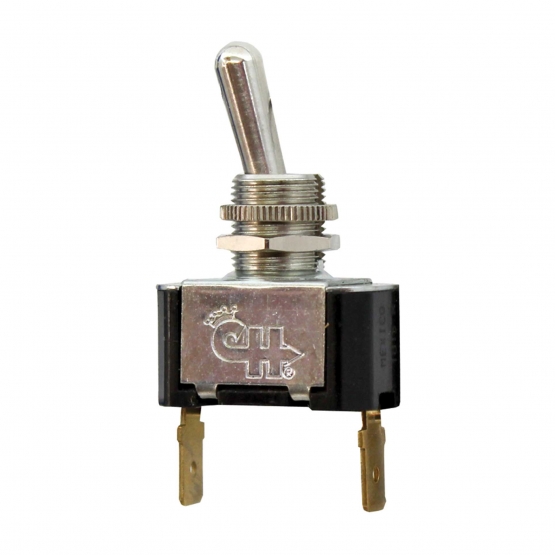

Toggle Switch, On-Off-On, SPST, 3 Blade

Product Code: E83450


$19.95

Switches



Toggle Switch

Switches for universal application. Silver contacts. Mounting stem is 15/32" -32 thread, 15/32" (11.9 mm) long, and fits panels up to 9/32" (7.1 mm), phenolic housing with plated steel cap. Nickel-plated brass mounting hardware. Blade terminals: 250 quick connect. Screw terminals: 6-32 screws. 25 amp at 12V DC, 15 amp at 24V DC.

SP Single Pole:
A switch device that opens, closes or changes connection in a single conductor of an electrical circuit.

DP Double Pole:
A switch device that opens, closes or changes connection between two conductors of an electrical circuit.

ST Single Throw:
A switch that opens, closes or completes a circuit at only one of the extreme positions of the actuator.

DT Double Throw:
A switch that opens, closes or completes a circuit at both extreme postions of its actuator.
