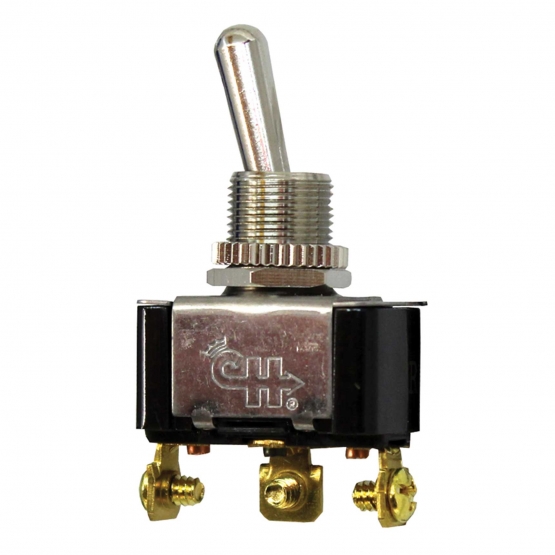

Switches for universal application. Silver contacts. Mounting stem is 15/32" -32 thread, 15/32" (11.9 mm) long, and fits panels up to 9/32" (7.1 mm), phenolic housing with plated steel cap. Nickel-plated brass mounting hardware. Blade terminals: 250 quick connect. Screw terminals: 6-32 screws. 25 amp at 12V DC, 15 amp at 24V DC.
SP Single Pole:
A switch device that opens, closes or changes connection in a single conductor of an electrical circuit.
DP Double Pole:
A switch device that opens, closes or changes connection between two conductors of an electrical circuit.
ST Single Throw:
A switch that opens, closes or completes a circuit at only one of the extreme positions of the actuator.
DT Double Throw:
A switch that opens, closes or completes a circuit at both extreme postions of its actuator.
